| Data sheet | |
|
Bearing numbering |

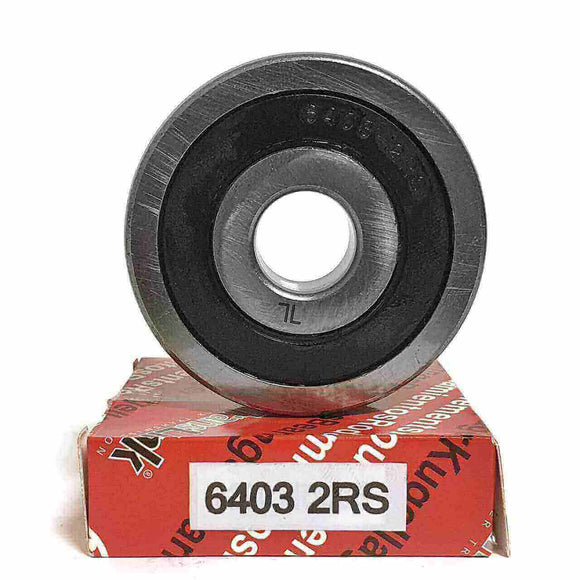

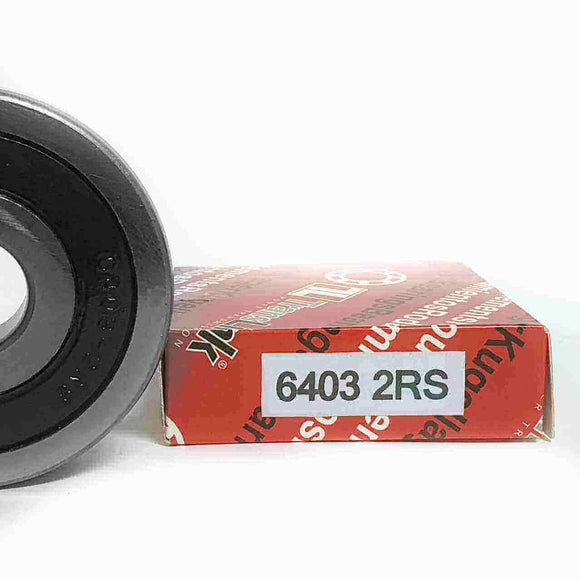

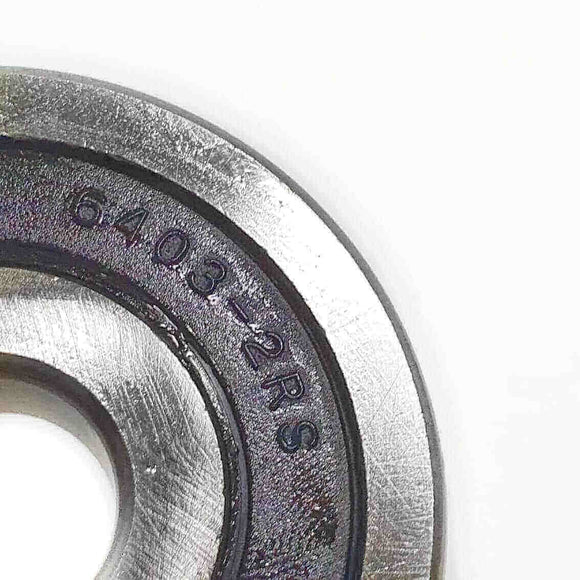

6403-2RS |
| Bearing seals |
Rubber |
| Internal diameter (d) |
17 mm |
| External diameter (D) |
62 mm |
| Height (B) |
17 mm |
| Clarity between steels |
Cn |
|
LOADING CAPACITY |
- |
| Radial dynamic load capacity |
23,800 N ≈ 23.8 qq |
|
Loading capacity Radial static |
11,500 N ≈ 11.5 qq |
| Fatigue Limit Capacity |
|
| VELOCITY | |
| Limit speed | 16,200 rpm |
| Reference speed | 11,600 rpm |
|
Calculation factor |
12,4 |
About:
The series of deep groove ball bearings is the most common series among the bearings, consisting of an inner race, an outer race, steels and mainly a cage. Some are usually lubricated, with rubber or metal seals, and others are open to work in fully lubricated environments, such as automatic gearboxes.
Applications:
The most popular applications in this type of product are the following:
- Electric motors
-
Car engines
- Office machinery
- Automation
- Garden tools
- Motorcycles
- Home appliances
Lubrication:
The bearings that are sealed, have adequate lubrication for their use for life, however, if they are installed in places where lubrication is continuous, such as automatic gearboxes, it is recommended that it be as free of contaminants as possible.
Mounting:
For the assembly of this type of bearings, it must first be verified that both the shaft and the part do not have damages that could alter the integrity of the bearing, later it is recommended to use a hydraulic press so that they remain in the required position. If the bearing does not fit with a little pressure, it is recommended to contact a supplier
